輸送污水漿泵用G40-2V-W112單螺桿泵配YCJ減速機是石灰泥專用泵-泊遠東??? 河北遠東泵業制造有限公司坐落于鑄造名鄉—河北省泊頭市。公司占地面積38650平方米，建筑面積20300平方米，是國內 的集設計、鑄造、生產、銷售、服務于一體的容積泵專業制造廠家。公司始建于1984年,有二十幾年專業研制經驗。目前產品設計采用國際先進水平實體設計軟件；產品研發、制造、檢驗、交付按照ISO9001質量管理體系控制過程質量；產品制造廣泛使用加工中心、數控機床、專用精機、高精設備；檢測設備擁有顯微鏡、漸開線檢測儀、光學投影儀、 測齒儀、脈沖輝光離子氮化爐等大型檢測設備，并建有國家B級試驗站。本廠以 的產品水平、優質的售后服務、恪守信用而在市場上倍受歡迎，產品不衰，贏得了用戶的普遍贊譽。公司已通過ISO9001：2000國際質量體系認證，中國船級社CCS型式認證，法國船級社BV產品工廠認證，美國船級社ABS產品質量認證，中國漁業船舶檢驗局船用泵認證,成為中石油物資資源市場成員、中石化物資資源市場成員。河北省知名產品生產企業，船用泵產品承制企業。
??? 公司以“泊遠東”牌齒輪泵，螺桿泵為主導產品，涉及21個系列，4200多種規格，年生產能力達43000多臺（套）。產品行銷油田、化工、電力、船舶、冶金、食品等各大行業。產品除滿足國內客商的需求外，部分出口至東南亞、美洲、歐洲等國家和地區。公司在設有30多個分支機構，并建立了完善的營銷服務網絡，擁有一支龐大敬業的營銷服務隊伍，可為廣大客戶提供優質的服務。 公司以嚴謹?shù)馁|(zhì)量體系、先進的生產設備、完善的檢測手段、豐富的制造經驗、務真求實的遠東團隊，來有效保證產品質量。以滿腔真誠期待與國內外各界人士攜手鑄就多方共贏的輝煌。

??? 我公司是一個生產齒輪油泵和螺桿泵的專業公司。公司擁有各種設備80臺,主要設備有：C6140? CW6163C車床24臺，TX611C/4鏜床2臺，M131M7130磨床8臺，C125A立車2臺，Y318K Y3150E滾齒機6臺，E3050X16/1搖臂鉆床2臺，E5163立式鉆床2臺，B1-400 銑床3臺，螺桿泵轉子專用QH2-007銑床1臺，半自動螺旋轉子QH2-029B銑床2臺，X53K立銑3臺，半自動螺旋轉子QH2-031 QH2-032磨刃機臺。
??? 我公司擁有省計量局制試驗臺1臺，自制試驗臺3臺，使生產產品從原材料投入到產成品出廠實現了全過程檢測。產品出廠合格率 ，具備較強的綜合配套制造能力。理化試驗室、長度計量室是國家計量確認合格單位，使產品從原材料投入到產成品出廠實現了全過程檢測。產品出廠合格率 ，具備較強的綜合配套制造能力，公司年可生產各種泵 6000 多臺。

運費說明:
??? 1.本公司常規產品1-3天發貨,特殊要求或者需定做的產品發貨時間已與客戶協商為準, 2.泵運費方式有兩種:快遞和物流.小泵和小型配件發快遞,其余體積較大,數量較多,推薦走專線物流貨運,一般南方,中部地區及沿海地區3-5天左右到達.西部,北部較遠的地區以及少數二次中轉地區5-8天左右可到,具體覆蓋范圍請咨詢公司客服人員.安裝使用:請您根據產品說明書的步驟進行操作,如有問題,請聯系我公司.為了保護您的利益,我們已經提醒客戶在收到貨物時,要開箱驗貨,如在打開驗貨時發現貨物丟失,損害或者不符,請拒 簽收,您簽收就代表已準確無誤的收到后屋,若在簽收貨物之后才發現貨物丟失或者不符,如不負責. 客戶收到貨后,產品無法安裝或者規格有誤,本公司提供退貨或者換貨服務,退貨或者換貨的客戶請保證貨物的完好無損,并承擔往返運費. 客戶收到后,如果產品存在質量問題,請?jiān)谑肇浐?天內聯系我公司,提供相關質量問題圖片,我公司將在 時間給您退貨或者換貨,因?yàn)槲夜疽呀?jīng)在發貨前已經仔細檢查過,所以過期將不提供此項服務,還請諒解.
●應用:
???該螺桿泵可用于輸送中性或腐蝕性的液體,潔凈的或磨損性的液體,含有氣體或易產生氣泡的液體,高粘度或低粘度的液體,包括含有纖維物和固體物質的液體.
??G型單螺桿泵系列,是我廠主要系列產品,應用極為廣泛.
???GS系列泵是由G型基本系列發展來的,區別在于特殊的泵體,"S"的意義是快速清潔,每個零件的任一細小部位都能被清潔得非常干凈.
???食品業:用于酒廠輸送酒,廢渣及制酒流程中的投配料的輸送.
???紡織業:用于輸送合成纖維,黏膠液,染料,油墨,尼龍粉液.
???造紙業:用于紙漿黑液的輸送.
???石油業:用于多種油類,油脂產品的地面集輸泵.
???化工業:用于輸送各種懸浮液,乳膠業,酸,堿,鹽液.
???造船業:用于輸送渣油,掃艙和污水,海水等.
???建筑業:輸送灰漿,灰膏.
???核工業:輸送帶顆粒的放射性液體.???電廠:用于水煤漿的輸送 .
???●G型單螺桿泵設計特點:
???1.聯軸器兩端采用一字銷萬向節接頭,其銷子和銷套是由特殊材料制成的,因而其壽命得到了很大的改
善,其結構簡單容易拆卸見.
???2.襯套兩端有包過來的橡膠使其與進出管聯接處密封可靠從而保證了襯套體不受到腐蝕
???3.在吸入管和軸承體之間裝有一個可進行更換的填料箱,既能用于填料密封又能用于機械密封(可進行
不同形式的密封更換).
???4.GS 系列吸入管和壓出管的聯接是標準DIN1187-A的螺紋聯接,可以快速拆卸吸入和壓出兩側的管子
和軟管

?

單螺桿泵由于結構和工作特性Single screw pump due to the structure and working characteristic

　　與活塞泵離心泵、葉片泵、齒輪泵相比具有下列諸多優點：Piston pump and centrifugal pump, vane pump, gear pump compared with many of the following advantages:??? 1、能輸送高固體含量的介質；1, the transmission of high solid content of media can;2、流量均勻壓力穩定，低轉速時更為明顯；2, flow uniform pressure stability, low speed is more obvious;3、流量與泵的轉速成正比，因而具有良好的變量調節性；3, flow is proportional to the pump speed, thus has a good regulatory variables;4、一泵多用可以輸送不同粘度的介質；4, a multi-purpose pump can transport different viscosity of medium;5、泵的安裝位置可以任意傾斜；5, the installation position of the pump can be arbitrary oblique;6、適合輸送敏感性物品和易受離心力等破壞的物品；6 items and the centrifugal force, etc, is suitable for conveying sensitivity damage items;7、體積小，重量輕、噪聲低，結構簡單，維修方便。7, small volume, light weight, low noise, simple structure, easy maintenance.

?

　　選用泵的規格是根據被輸送液體的性質和流量、壓力來決定的，而泵的轉速則由輸送液體的粘度和腐蝕性、作為主要參數來選擇，才能保證泵可靠運行。Choose the specifications of the pump is according to the nature of the liquid to be delivered and decide the flow, pressure, while the pump speed by conveying liquid viscosity and corrosive, as the main parameter to select, to ensure the pump running.泵的設計轉速為輸送清水或清水相類似的無腐蝕性液體時允許 高轉速，在實際使用中因介質性質與壽命要求不同，選用時一般都應低于設計轉速。Design speed of pump for conveying water or similar without corrosive liquid to allow the highest speed in the water, in be used actually due to the different requirements, dielectric properties and service life when choosing generally should be lower than design speed.對高粘度和含顆粒介質，一般采用設計轉速的1/2-1/3或更低些，低轉速對泵的磨損有利，但在使用后由于定子的磨損流量下降，這時可適當提高轉速，以補償流量下降也為常策。For high viscosity and particle medium, generally USES the design speed 1/2 - a third or more lower, low speed of pump wear and tear, but after use due to the wear and tear of the stator flow down, then can be appropriately increased speed, to compensate for declining to often.輸送介質的溫度應在-10℃～80℃特殊情況可高達120℃。The temperature of the medium should be - 10℃~ 80℃special circumstances can be as high as 120℃.

泵的每級（定子的一個導程）正常壓力為0.6Mpa，短時間（不超過30分鐘）內允許高達0.8Mpa，當磨損后在相同輸出壓力時的容積效率要逐步下降。Pump per level (lead) of the stator of a normal pressure is 0.6 Mpa, inside short time (less than 30 minutes) to allow up to 0.8 Mpa, when after wear and tear on the e output pressure volumetric efficiency will decline gradually.泵送清水時 高吸程為8米，實際使用建議不超過6.5米，當泵送高粘度介質時，應以正壓吸入。When pumping water to the highest suction is 8 meters, the actual use suggest no more than 6.5 meters, when pumping high viscosity medium, the positive pressure breathing.

????單螺桿泵使用過程中故障及解決方法Single screw pump failure in use process and solving methods

???單螺桿泵再抽一些井中的油時經常會遇到的故障：桿斷脫、泵漏失、定子溶脹、定子脫膠、管漏失等，下面具體介紹下。When single screw pump some pumping Wells in the oil again often fault: rod break off and leakage of pump, and swelling of the stator, the stator degumming, pipe leakage, etc., under the specific introduction below.

???1、桿斷脫:由于單螺桿泵抽油桿負荷過大、磨損或誤操作等原因，引起抽油桿斷裂，脫扣或擼扣的情況，具體表現為：在短期內，泵效大幅度下降，動液面迅速上升，電流下降甚至接近空載電流。1, the rod break off: due to the large single screw pump rod load, wear or wrong operation and so on reasons, lead to sucker rod breaking, tripping or lu buckle, embodied in: in the short term, pump efficiency drops sharply, the working fluid level rising rapidly, current decline or even close to the no-load current.扭矩和軸向力仍為平穩直線，但由于缺少了井下泵的工作扭矩，光桿扭矩值遠小于正常工作范圍，軸向力缺少了液壓力對轉子產生的軸向力，因此也小于正常范圍，根據斷脫部位，桿柱自重產生的軸向力不同，據此可計算出桿柱斷脫深度。Torque and axial force is still as smooth as a straight line, but the lack of the downhole pump working torque, polished rod torque value is far less than the normal scope of work, the axial force without the fluid pressure of the axial force produced by the rotor, which is less than the normal range, according to the broken parts, rod string axial force produced by self weight, can calculate the depth of the rod string break off accordingly.

??2、泵漏失:由于單螺桿泵的定子橡膠磨損，造成定轉子過盈減小，泵承壓能力下降。And leakage of pump, 2: as a result of the single screw pump stator rubber wear, cause stator interference is reduced, the pump pressure can drop.因此，漏失量增加。Therefore, the loss increased.具體表現為：泵效逐漸下降，動液面逐漸上升，電流逐漸下降。Specific performance is: the pump efficiency is falling, working fluid level is gradually rising, the current gradually decreases.由于漏失量加大，泵有功扭矩下降，扭矩低于正常范圍。Decline because of the increase amount of leakage, pump active torque, torque is lower than the normal range.由于液壓力產生的軸向力下降，軸向力低于正常范圍，但仍大于桿柱在采出液中的重量。The axial force generated in the fluid pressure drop, axial force is lower than the normal range, but still greater than the rod string weight in produced fluid.

???3、定子溶脹:由于采出液的作用。3, stator swelling: due to the effect of produced fluid.單螺桿泵的定子橡膠發生溶脹，造成定轉子過盈增加，泵效和動液面正常，電流增加，由于過盈大，定轉子的初始扭矩增加，因此光桿扭矩增加，超過正常范圍，嚴重時會造成定轉子抱死，但軸向力正常。Single screw pump stator rubber swelling occurs, causing rotor interference increase, pump efficiency and working fluid level is normal, current is added, due to the interference, rotor initial torque increase, so the polished rod torque increase, more than the normal range, serious will cause the rotor, holding in death of the set, but normal axial force.??? 4、定子脫膠:定子脫膠是由于定子粘接強度不夠造成。4, stator degumming: stator degumming is caused by the stator bonding strength is not enough.表現形式為泵效急劇下降，動液面上升，電流下降并波動。A sharp drop in form of pump efficiency, dynamic liquid level rise, current decline and volatility.脫膠時，泵有功扭矩為零，光桿扭矩下降很大。Degumming, pump active torque is zero, the polished rod torque decreased a lot.另外，由于脫膠后定轉子之間發生不規則摩擦。In addition, because after degumming with irregular friction between stator.光桿扭矩會出現不規則液動。Polished rod torque will be irregular hydraulic.液壓力產生的軸向力為零，因此，光桿軸向力低于正常范疇，但仍高于桿柱在采出液的重量。Axial force produced by hydraulic pressure is zero, therefore, the polished rod axial force is lower than the normal category, but still higher than the weight of the rod string in the produced fluid.

???5、管漏失:管漏失是由于油管壁上存在裂縫造成的。5, pipe leakage, leakage of tube is caused by the tubing wall cracks exist.現象為泵效下降，動液面上升，電流減小。Phenomenon of pump efficiency drops, working fluid level rise, current decreases.由于單螺桿泵工作壓差減小，泵有功扭矩下降，光桿扭矩低于正常范圍，液壓力產生的軸向力減小，光桿軸向力略低于正常范圍，但仍高于桿柱在液體中的重量。By the pumping action of the single screw pump working pressure differential is reduced, active torque, polished rod torque is lower than the normal range, the axial force produced by hydraulic pressure decreases, and polished rod axial force is slightly lower than the normal range, but still higher than that of rod string weight in liquid.這是單螺桿泵在抽井中的油時常遇到的故障類型，在使用時一定要注意。This is single screw pump in oil Wells in the fault types often encountered, it is important to note that when using.

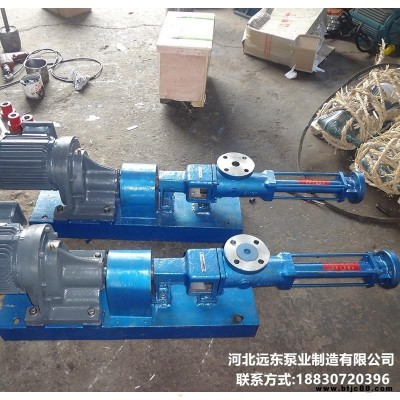

輸送污水漿泵用G40-2V-W112單螺桿泵配YCJ減速機是石灰泥專用泵-泊遠東

　　1、流量：0.2--130m3/h;2、工作壓力：≤1.2MPa;3、轉速：≤1000r/min;4、使用溫度：常規0--80℃，特殊材料可達120℃　;5、粘度：1--1000000mm2/s;6、吸上高度：≤6m（清水介質）
