| 公稱通徑 : | 15 | 品牌 : | VICTOR |
| 連接形式 : | 螺紋 | 材質(zhì) : | 不銹鋼 |
| 型號 : | SR 703ME-996 | 適用介質(zhì) : |
?

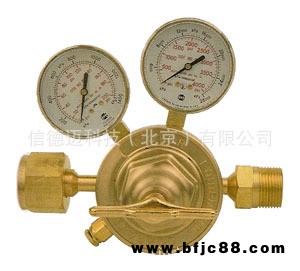

美國VICTOR減壓閥SR 703ME-996
SR 703ME-996 REGULATOR
?
?
Victor Regulators
Victor Professional ? Heavy Duty
Manifold
Gas Service Model No.
Delivery Range
(PSIG) Part No.
HIGH PRESSURE DELIVERY, PISTON
Air, Oxygen,
Inert Gas,
Hydrogen
SR 4MF-996
SR 4MG-996
SR 4MJ-996
SR 4MF-997
SR 4MG-997
SR 4MJ-997
50-750
100-1500
200-3000
50-750
100-1500
200-3000
0781-1457
0781-1437
0781-1458
0781-1436
0781-1438
0781-1456
SINGLE STAGE
Air, Oxygen,
Inert Gas
SR 450MD-996
SR 450ME-996
5-125
10-200
0781-0611
0781-0612
Methane,
Hydrogen SR 452MD-997 5-125 0781-0613
CO2 SR 453MD-996 5-125 0781-0615
Acetylene SR 460MA-997 2-15 0781-0617
L.P. Gas SR 461MB-997
SR 461MD-997
2-40
5-125
0781-0618
0781-0619
EXTRA HIGH FLOW, SINGLE STAGE
Air, Oxygen,
Inert Gas
SR 700MD-996
SR 700ME-996
SR 700MD-500
5-125
10-200
5-125
0780-0797
0780-0798
0780-0809
Methane,
Hydrogen SR 702ME-997 10-200 0780-0803
CO2 SR 703ME-996 10-200 0780-0805
Acetylene SR 710MA-997 2-15 0780-0806
L.P. Gas SR 711MB-997 2-40 0780-0807
TWO STAGE
Methane,
Hydrogen
VTS 452MD-997
VTS 452ME-997
5-125
10-200
0781-3961
0781-3962
TWO STAGE, HIGH FLOW
Air, Oxygen,
Inert Gas
VTS 700MD-996
VTS 700ME-996
5-125
10-200
0780-0997
0780-0998
CO2
VTS 703MD-996
VTS 703ME-996
5-125
10-200
0780-1004
0780-1005
Acetylene VTS 710MA-997 2-15 0780-1006
L.P. Gas VTS 711MB-997 2-40 0780-1007
Model No.
Delivery
Manifold Range
CGA Inlet
Connection
SR 450 MD 996
Sample ordering information
Delivery Range Key:
A 2-15 PSIG B 2-40 PSIG
D 5-125 PSIG E 10-200 PSIG
F 50-750 PSIG G 100-1500 PSIG
J 200-3000 PSIG
Regulators will deliver at least the stated upper range
at no flow and in some cases may exceed the stated
upper range.
Inlet Connection: 1"-11.5 NPS(M) Threads on Inlet
Outlet Connections: 1"-11.5 NPS(F)
Manifold Regulators
? Wide range of flow capabilities
? Wide range of pressure delivery
? Single and two stage models available
Single Stage Design
SR Series Manifold Regulator
Two Stage Design
VTS 700 Regulator
MANIFOLD REGULATORS
Listed
SAMPLE ORDERING INFORMATION
Single Stage Design
Conforms to
SR Series Manifold
High Delivery / High Flow Manifold Regulators
Gas Service Model No. Delivery Range (PSIG) Part No.
HIGH PRESSURE DELIVERY, PISTON
Air, Oxygen, Inert Gas Hydrogen SR 4MF-996 SR 4MG-996 SR 4MJ-996 SR 4MF-997 SR 4MG-997 SR 4MJ-997 50-750 100-1500 200-3000 50-750 100-1500 200-3000 0781-1457 0781-1437 0781-1458 0781-1436 0781-1438 0781-1456
SINGLE STAGE
Air, Oxygen, Inert Gas SR 450MD-996 SR 450ME-996 5 -125 10-200 0781-0611 0781-0612
Methane Hydrogen SR 452MD-997 5 -125 0781-0613
CO2 SR 453MD-996 5 -125 0781-0615
Acetylene SR 460MA-997 2 -15 0781-0617
L.P. Gas SR 461MB-997 SR 461MD-997 2 -40 5 -125 0781-0618 0781-0619
EXTRA HIGH FLOW, SINGLE STAGE
Air, Oxygen, Inert Gas SR 700MD-996 SR 700ME-996 SR700MD-500 5 -125 10-200 5-125 0780-0797 0780-0798 0780-0809
Meth/Hydro SR 702ME-997 10-200 0780-0803
CO2 SR 703ME-996 10-200 0780-0805
Acetylene SR 710MA-997 2 -15 0780-0806
L.P. Gas SR 711MB-997 2 -40 0780-0807
TWO STAGE
Methane Hydrogen VTS 452MD-997 VTS 452ME-997 5 -125 10-200 0781-3961 0781-3962
TWO STAGE, HIGH FLOW
Air, Oxygen Inert Gas VTS 700MD-996 VTS 700ME-996 5-125 10-200 0780-0997 0780-0998
CO2 VTS 703MD-996 VTS 703ME-996 5-125 10-200 0780-1004 0780-1005
Acetylene VTS 710MA-997 2-15 0780-1006
LP Gas VTS 711MB-997 2-40 0780-1007
Delivery Range Key A 2-15 PSIG, B 2-40 PSIG, D 5-125 PSIG, E 10-200 PSIG, F 50-750 PSIG, G 100-1500 PSIG, J 200-3000 PSIG Connections: 1”-111/2 NPS(M) Threads on Inlet 1”-111/2 NPS(F) Threads on Outlet
APPLICATION & USES
Manifold Regulators
.
Wide range of flow capabilities
.
Wide range of pressure delivery
.
Single and Two stage models available
Two Stage Design
See illustration Page 5
(Single & Two Stage Regulators) Flow Chart: Section A Pages 41-46
?
